Dry Or Wet Grate Ball Milling Equipment for Ore Dressing Production Line 18.5kw

Brand Name : Lipu

Model Number : 900x1800

Certification : ISO9001-2008,CE,IQNet

Place of Origin : China

MOQ : 1set

Price : negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 90 Set/Sets per Quarter

Delivery Time : 30-45 working days after received your payment

Packaging Details : Container

Product Name : Ball Mill

Model : 900x1800

Maximum Ball  Volume : 1.5t

Capacity : 0.65-2t/h

Weight : 5.5t

Power : 18.5kw

Condition : New

Application : Building material and chemical industry

Contact Now

Dry Or Wet Grate Mining Ball Mill For Ore Dressing Production Line 18.5kw

Introduction:

Mining Ball mill is an efficient tool for grinding many kinds of mine and other materials into fine powder, or to select the mine. It is widely used in building material and chemical industry. There are two ways of grinding: the dry way and the wet way.

Working Principle:

The main component of dry grate ball mill is a cylinder with bigger diameter and smaller length which is revolved by transmitting machinery. Materials are put in cylinder through the feed opening and then thoroughly grinded. The falling course of iron balls and ores can produce huge falling impact and autogenous grinding. The continuous feeding of ores can create considerable pressure to make ores move from feed opening toward discharge opening. Finally, acceptable particles are discharged from the discharge opening. For wet mill, acceptable ore particles are carried away by water, whereas for dry mill, they are carried away by air. It is usually used for fine grinding.

Technical Data :

Model Shell rotation speed(r/min) Ball load(t) Feeding size(mm) Discharging size(mm) Capacity(t.h) Motor power(kw) Weight(t)
900×1800 36~38 1.5 ≤20 0.075-0.89 0.65-2 18.5 5.5
900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 6.7
1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 12
1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 12.8
1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 13.8
1500×3000 29.7 7.5 ≤25 0.074-0.4 2-5 75 16.8
1500×4500 27 11 ≤25 0.074-0.4 3-6 110 21
1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 25.8
1830×3000 25.4 11 ≤25 0.074-0.4 4-10 130 29
1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 35.5
1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 43.8
2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 155 34.8
2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245 38
2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280 51.8
2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 60
2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380 62
2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380 64.8
2400×3000 21 23 ≤25 0.074-0.4 7-50 245 54
2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320 65
2700×4000 20.7 40 ≤25 0.074-0.4 12-80 380 94
2700×4500 20.7 48 ≤25 0.074-0.4 12-90 480 102
3600×4500 17 90 ≤25 0.074-0.4, Determined by process conditions 850 158
3600×6000 17 110 ≤25 0.074-0.4 Determined by process conditions 1250 175

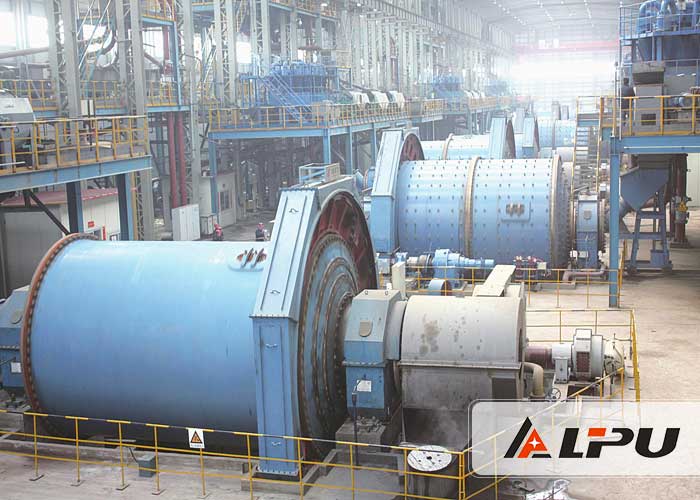

Product Pictures Show:
Dry Or Wet Grate Ball Milling Equipment for Ore Dressing Production Line 18.5kw
