2×8m Environment Friendly Intermittent Industrial Drying Equipment
Equipment Introduction:
Environmental friendly Intermittent industrial drying equipment is improved on the basis of traditional
rotary drum dryer, the feeding, drying and discharging process of the dryer is intermittent, the drying
time can be set up according to the temperature of drying medium, the moisture of the feeding and
discharging material and other factors.
It is applicable for drying sludge, coal, sand, animal dung, fly ash, clay, coal slime, ore, steel slag, quartz sand, kaolin clay, bentonite, sawdust, desulfurization gypsum, compound fertilizer and other materials by utilizing of tail gas waste heat. It makes use of waste to produce useful product, such as fuel, fertilizer and concrete aggregate. That is to say, it is environmental friendly.
Working Principle :
1. The corotation of the cylinder is the feeding stage when the feeder starts to work, and the feeder stops
once the set feeding quantity is reached;
2. And then the cylinder rollbacks and enters the stage of drying, the drying medium will be drew into the
cylinder of the dryer by the induced draft fan at the end of the drying system, to do the heat exchange
with the materials being lifted up constantly inside of the dryer, the evaporated moisture is taken out
continuously by the hot air, the material to be dried to qualified moisture content after a certain period of
time;
3. At last, the cylinder corotates once again, the dried material is discharged from the dryer cylinder
under the push of discharging screw, one time of drying process has been finished.
Technical Parameters:
|
Model
|
Cylinder diameter
(mm)
|
Cylinder length (mm)
|
Cylinder volume (m3)
|
Cylinder rotary speed
(r/min)
|
Max loading
(m3)
|
Power
(kW)
|
|
2×8
|
2000
|
8000
|
25.1
|
1-5
|
3.8
|
11×2
|
Product Tags:
|
|

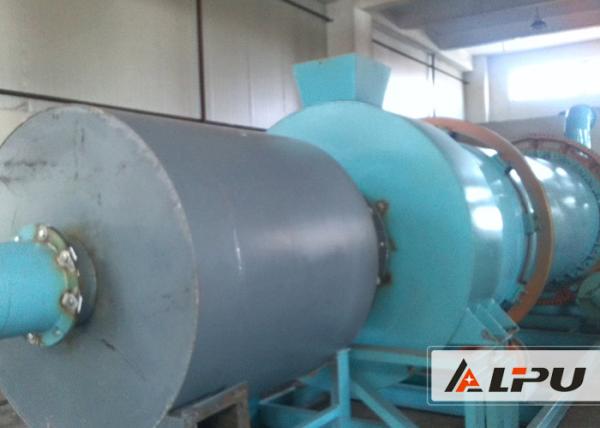

2×8m Environment Friendly Intermittent Industrial Drying Equipment Images
|
